ALUMINIUM EXTRUSION PRESS - Cap Screws. These tools are often best suited for Cap screws using hex key to eliminate any side loading. Hex Cassette link tools are designed for low clearance and long stud applications.Industry examples for the Hex Cassette are: Mining, Mill Liners, Crushers, Wear Plate Bolts etc. Petrochemical Refineries Exchangers, Flanges, Pumps.  Power Stations Turbines, Steam Pipes, Pumps, Quarries, Crushers.  Earthmoving Excavators, Slew Rings, Cat,  Komatsu etc.  Prep Plants, Malco /Honert Mechs.

PETROCHEMICAL:  All Hydraulic Torque Multiplier high torcs use reaction pawls to provide full ratcheting. This also allows the tool to ratchet without being held. Reaction pawls act like an anti-wind up device. It locks in behind each tooth of the ratchet as the gear rotates.

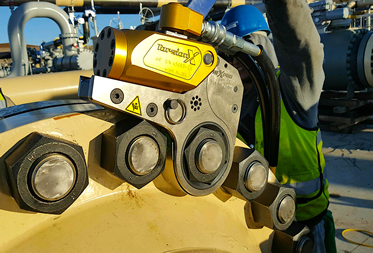

The hose swivel adjusts Vertically and Horizontally to ensure the hoses can moved to the safest position. The Hex cassette tool is the ideal tool for High Pressure Flanges. Long studs create problems for even the deepest Impact Sockets.


The Hex Cassette becomes the solution. The Hex Cassette tool reacts inline directly onto the next nut. This eliminates any side load forces. 90 degree pipe  flanges often result in minimal clearance over the studs this also is no challenge for the  Low tool. For critical joints 2 or 4 tools can used together to improve speed and even clamping load. The Hex Cassette tools take on some tough access issues. These tools are your perfect partner when nothing else will fit. Tough, Light weight, well backed.


FOUNDATION BOLT TOOLS The Hydraulic Torque multipliers are the perfect partner for these applications. Foundation bolts are often studs which are chemically anchored or concreted into the ground, walls and ceilings etc. They are used in civil and mechanical construction to hold plant & materials in place. These might be building frames, Ball and Sag Mills, Rock Bolting of Ceilings in underground mines, Chair Lift uprights in the snow fields ...

This tool allows the excess stud to pass through the tool. Correct torque on these structural bolts is important. Theses tools make this job a breeze because it's light weight and small compared to conventional torque tooling. When working over head tooling needs to be light weight. To tighten or loosen the nut simply flip the Hex cassette wrench over to work in reverse. If you have a application similar to this contact us or email a photo of your bolting job.



ADJUSTING SET SCREWS: Access doesn't get much tighter than this. The Hex Cassette has thousands of uses. In the Locomotive industry we have sold the Hex Cassette for doing Big Ends on V12 Motors. Elongation measurement of the stud is used to achieve correct stud load. A Large micrometer is used to measure the total length of the stud.
Using a Hex Cassette '4' they apply rotation to the nut and measure the stud extension at the same time. The Hex models are the result of many years in the field refining the requirements of our tooling. We get to what works and what doesn't. The Hex Cassette is a balance of technology the best raw materials and experience. When it comes to Hydraulic Torque multipliers you cant take short cuts. They need design excellence and precision to work correctly.

1, 2 , 3 ,4 Tools .... Hex Cassette torque wrenches can be easily set up to run off one pump. This provides even load or clamping pressure all applied simultaneously. Following the first flange setting / assembly the pre torques may be inconsistent.

When the multi torque tool system is applied it quickly evens out the uneven load. The tool with the least resistance will operate until pressure to the other tools equalizes. Then all the tools will operate together. No more guess work. This system is fast, simple to operate and achieves the ultimate solution to even flange load clamping pressure.

MALCO HONERT / LUDOWICI / METSO / AURI / SCHANCK Unbalanced vibrating motors. These gearboxes are bolted to beams across large screens in processing plants. Often found in Prep Plants these screens are vibrated by the unbalanced motors to refine raw materials.

Continual vibration means without the correct torque these bolts will work lose. The webbing on the gearbox and limited over head clearance makes using a Impact Socket and square drive tool not possible. This photo shows the tool in position even with the counter weight in the lower position. The processing Industry has many applications like this. They use crushers, sizers, mills which all experience vibration.
